HEAT STORAGE

from 57 to 85 BTU

HEIGHT

from 1,56 to 1,86 m

BASE PRICE FROM

10.044 €

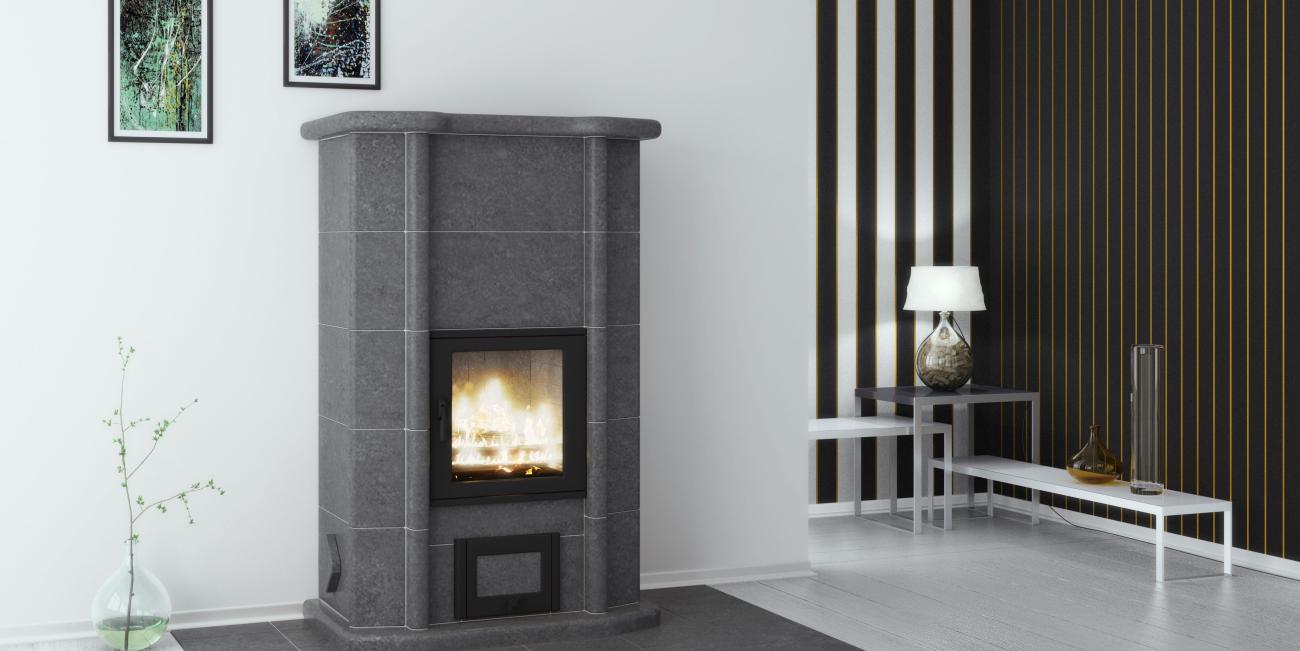

The chamfered front corners make Hektor look quite slim when viewed from the side. All edges have been rounded without exception

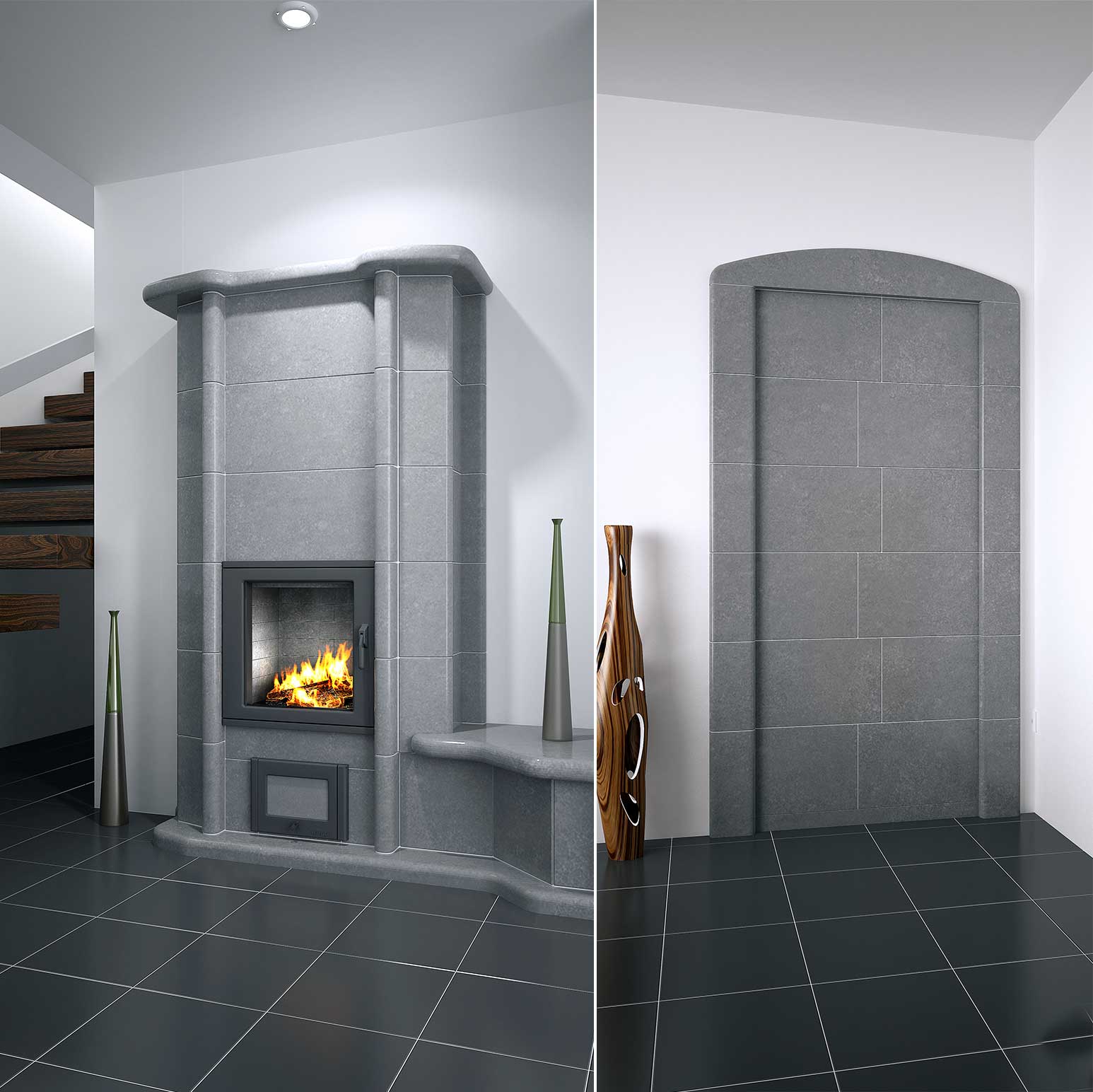

Efficient use of the backside

The integration into the wall allows direct heating of several rooms

1

Different Dimensions and Capacities

Damit Hektor perfekt in jede Umgebung passt, haben wir das Basismodell in fünf unterschiedlichen Größen konzipiert.

Alle Modelle können mit einem 60 mm hohen Bodensims installiert werden

HEKTOR

HEIGHT

1565 mm

WEIGHT

1634 kg

AMOUNT OF HEAT

57 BTU

HEKTOR X

HEIGHT

1866 mm

WEIGHT

1919 kg

AMOUNT OF HEAT

66 BTU

HEKTOR L

HEIGHT

1565 mm

WEIGHT

2361 kg

AMOUNT OF HEAT

82 BTU

HEKTOR LX

HEIGHT

1866 mm

WEIGHT

2560 kg

AMOUNT OF HEAT

85 BTU

HEKTOR WT

HEIGHT

1866 mm

WEIGHT

1793 kg

AMOUNT OF HEAT

78 BTU

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

HEKTOR

with 57 BTU stored heat quantity

Height: 1565 mm

Width: 940 mm

Tiefe: 600 mm

Weight: 1634 kg

HEKTOR (erhöhte Version)

with 66 BTU stored heat quantity

Height: 1866 mm

Width: 940 mm

Tiefe: 600 mm

Weight: 1919 kg

HEKTOR (tiefe Version)

with 82 BTU stored heat quantity

Height: 1565 mm

Width: 940 mm

Tiefe: 782 mm

Weight: 2361 kg

HEKTOR (erhöhte und tiefe Version)

with 85 BTU stored heat quantity

Height: 1866 mm

Width: 940 mm

Tiefe: 782 mm

Weight: 2560 kg

HEKTOR (mit Wärmetauscher)

with 78 BTU stored heat quantity

Height: 1866 mm

Width: 940 mm

Tiefe: 600 mm

Weight: 1793 kg

PRICE Base price HEKTOR from:

10.044 €

Price incl. VAT of 19%. Illustrations include special accessories which are not included in the basic price. Installation and delivery will be charged separately.

DOWNLOAD TECHN. SPECIFICATIONS

2 MODELLVARIANTEN

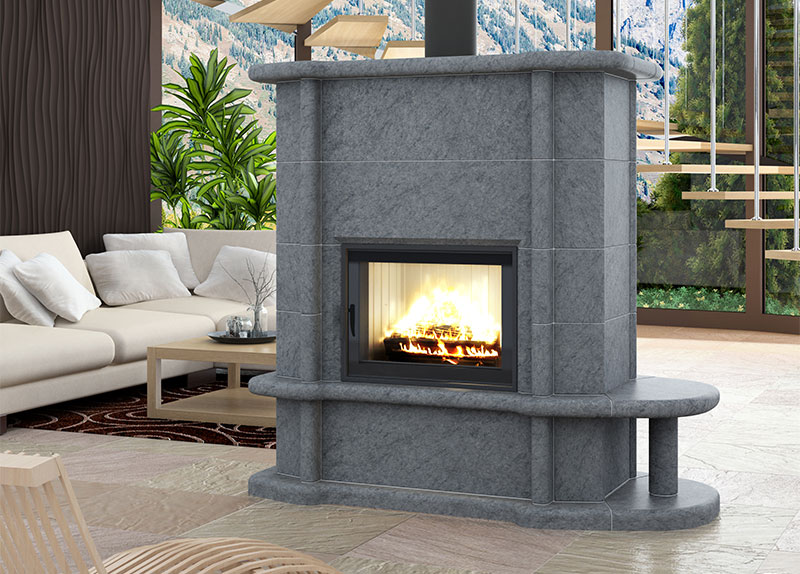

As a wall fireplace or as a "tunnel"-fireplace
